TUBE CHASSIS CERT. 6.0 - Good Until 11/ 2027
Santuff Coilovers – Wilwood 4-Wheel Disc Brakes
4-Link Suspension
Strange: 9” Cntr Section – 4:30 Gears
Moser Axles 35 Spline
Weld American Torque Thrust II Race Whls

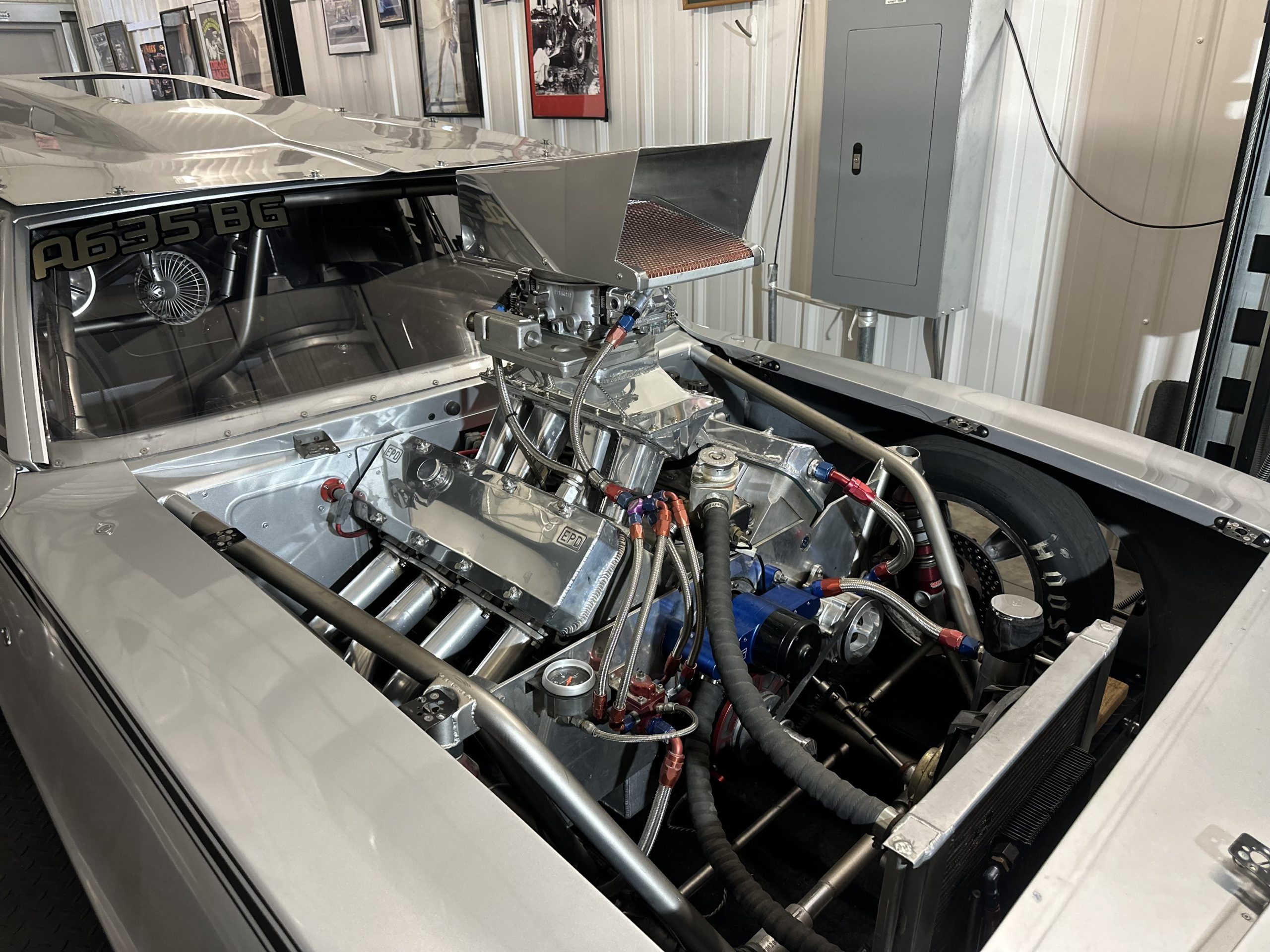

ENGINE - Donovan Aluminum – 555 Cu. In. (EPD Built)
Bore 4.5620 Stroke 4.250
Oliver Rods 6.535 Length
Bill Miller Gas Ported Pistons – 16.50.1 Compression
Calles Stealth Crank
Crane Cam .801 Lift / .761. @ 108⁰ cl
HEADS – BRODIX BIG CHIEF 12⁰
Titanium Valves Int. 2.375 Ex 1.880
TD Rockers 1.75:1
Manley Valve Springs 350 Lb Seat Pressure

TRANS: Dedenbehr / Ried P.G. Straight Cut Gears, 1:80 1st
A-1 Converter 6100 RPM Stall
RACE PACK SPORTSMAN RECORDER w/Separate Power Source
MSD 7AL IGNITION BOX w/Crank Trigger
Magna Fuel PUMP & FILTER COMBO 500 GPM
16 V BATTERY
CARBURETOR - PRO SYSTEM – 1250 CFM CUSTOM BUILT
Dedenbear Mechanical Throttle Stop
